Mid Drive Ebike Conversion Kit with Battery
52V 1000W 52V20Ah / VD03 Mini (5 PAS) / United States|Brake Lever
$1,610.99 USD
Skip to product information
Need help selecting the right motor? Contact us — we guide you through every build.
🔋 Battery is optional, please make your selection when ordering.
Mid Drive Ebike Conversion Kit with Battery
$1,610.99 USD
Product Details
SPECIFICATIONS
Design: Brushless
Motor: Side Hung Motor
Mounting Position: MID Drive
Voltage: 48V
Wattage: 501 - 1000w
Thumb Trottle
Peddle Assist Mode
Compact Design
Balanced Performance
IPX5 Waterproof
Easy Install
🚀 Fast Shipping | 💼 Reliable Support
📦 Delivery
US Delivery: 2–7 business days
All orders include tracking
🛡️ Warranty & Service
1-Year Motor Warranty
Professional technical support available in: United States

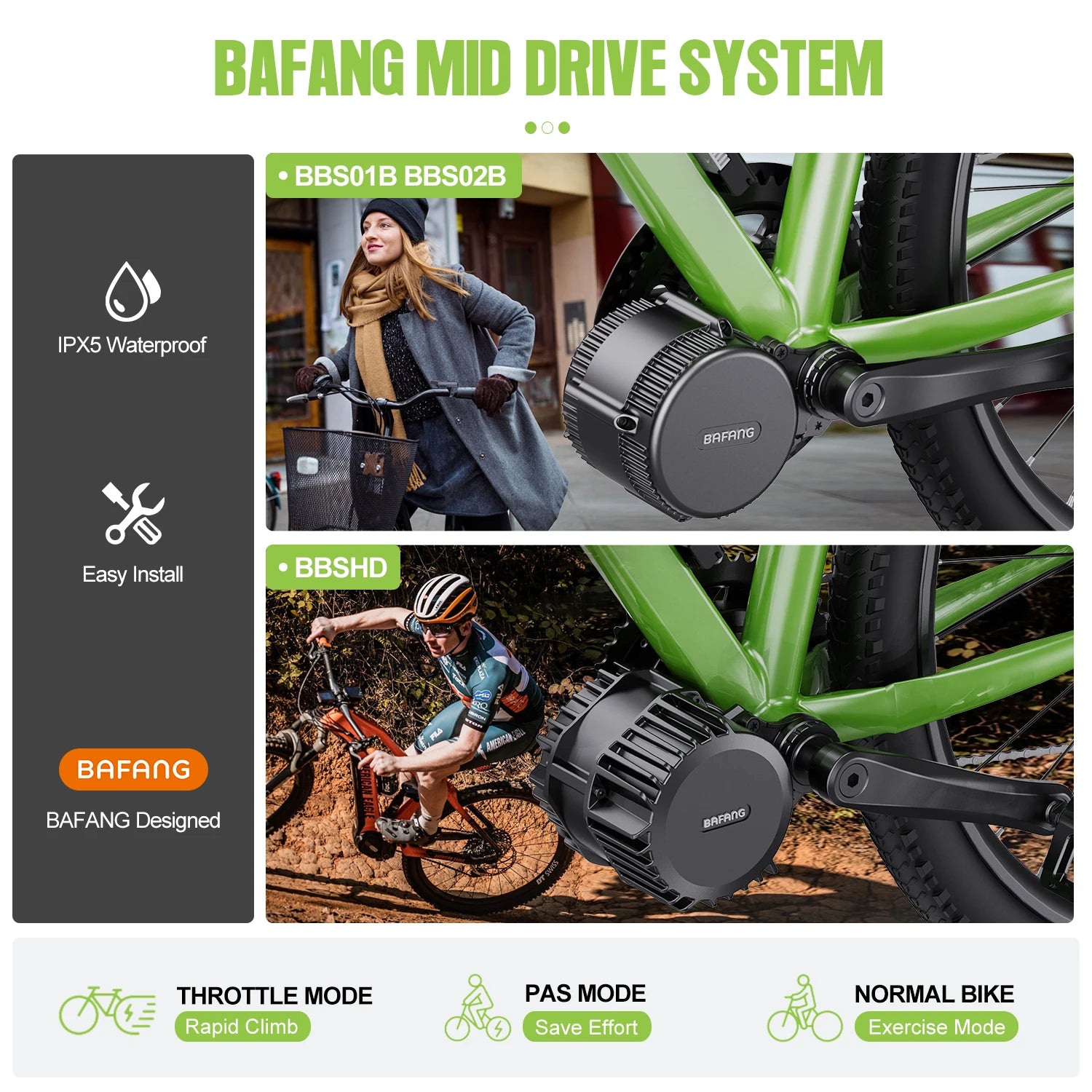

BAFANG Mid-Drive Motor Kit （CAN PROTOCOL）
Convert your bike into a powerful, smart e-bike — easily and reliably
⚡ Engineered to Perform
Powerful ∙ Quiet ∙ Seamlessly Integrated
Compact design blends naturally into most e-bike frames, delivering smooth, responsive handling

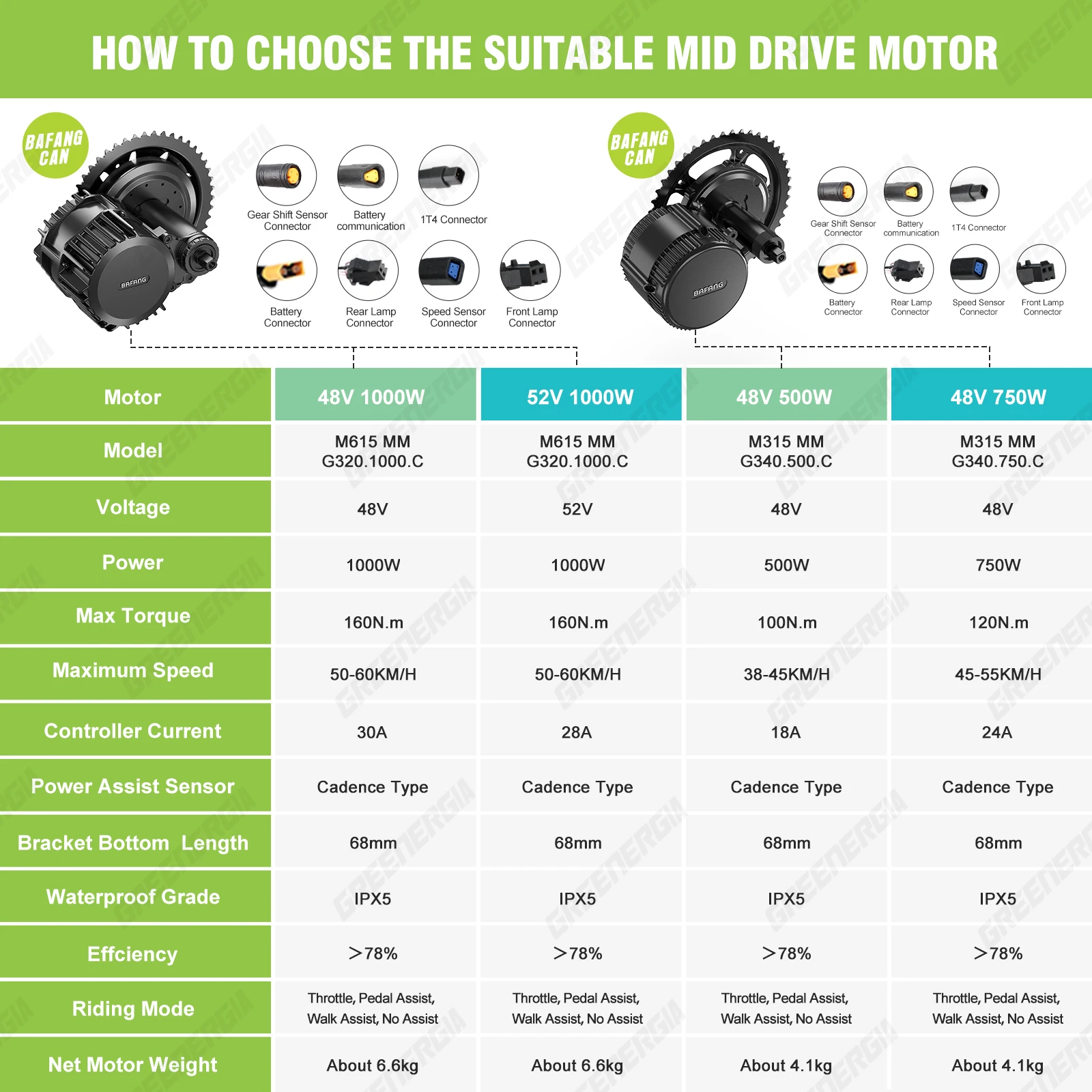

🚀 M615 – Ultimate Power
Rated Power: 1000W
Max Torque: 160 Nm
Best For: eCargo ∙ eSpeed ∙ High-performance builds
Compatibility: Fits 68–73mm bottom brackets
🛣️ M315 – Balanced Performance
Rated Power: 500W/750W
Max Torque: 100 N.m./120 N.m.
Best For: eCity ∙ eTour ∙ eTricycles
Compatibility: Fits 68–73mm bottom brackets
🔧 Match Your Ride. Power Your Journey.
Need help selecting the right motor? Contact us — we guide you through every build.

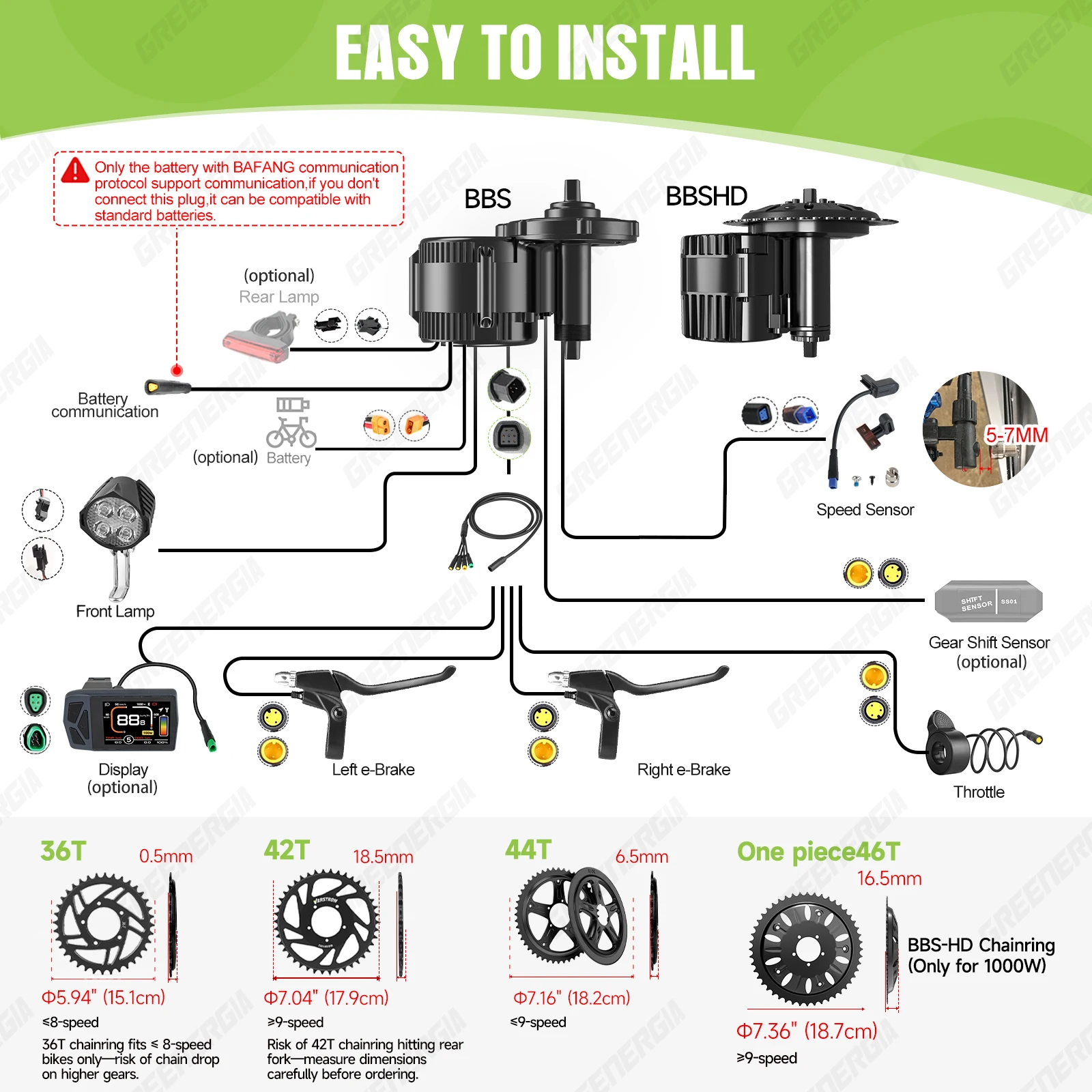

⚡ Easy Installation | Install in 60 Minutes, Ride in No Time.

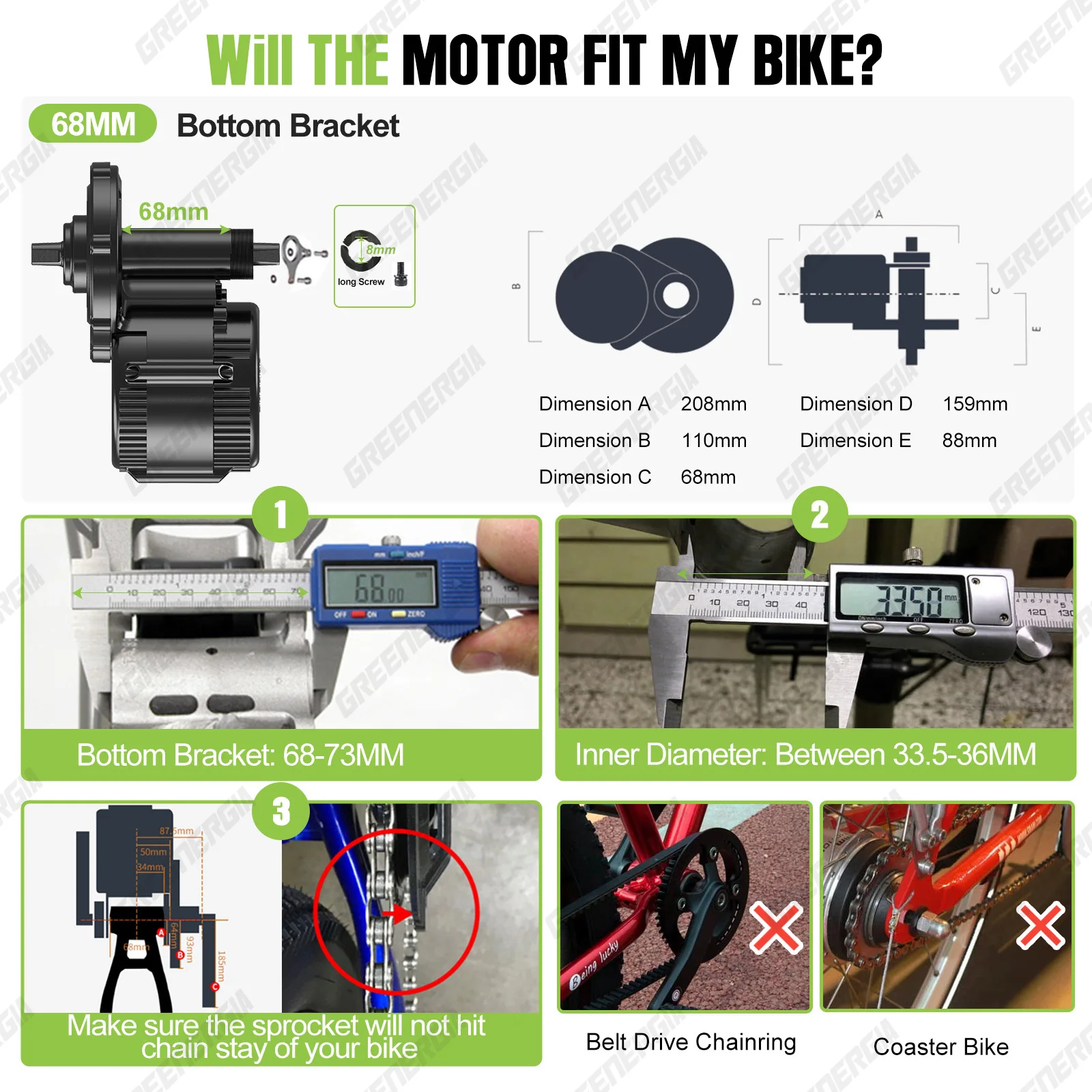

How Do I Know If the BAFANG BBS OR BBS-HD Fits My Bike?
📏 Check Your Bottom Bracket
Use calipers to measure:
✅ Length: 68–73mm
✅ Inner Diameter: 33.5–36mm
🚲 Compatible With:
Mountain bikes | Road bikes | Most city bikes
⚠️ Frame Clearance Note
On smaller or unique frames, check that the chainring does not contact the rear frame.

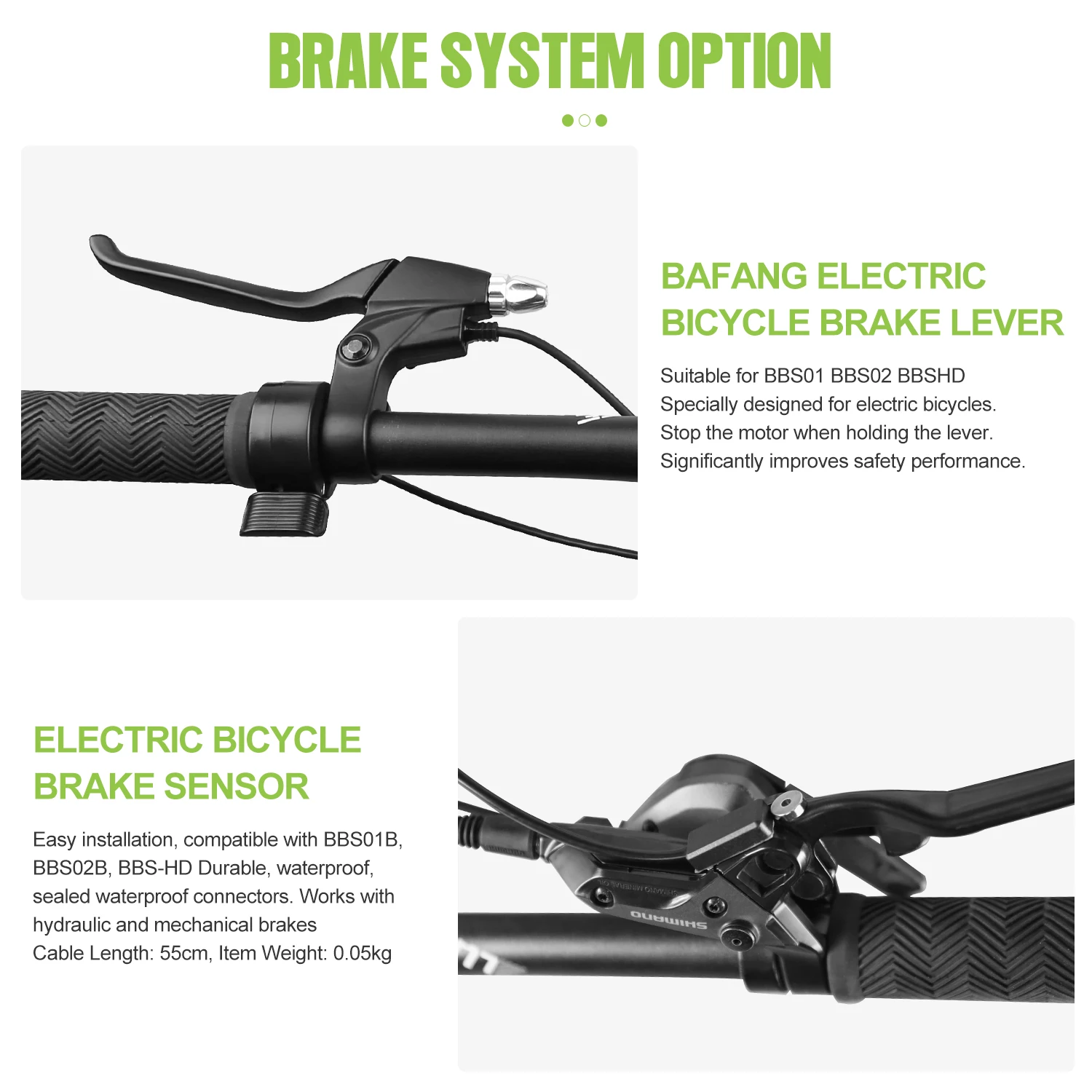

🔧 BRAKE SYSTEM OPTIONS | Safety Tailored for Your E-Bike
📊 Quick Comparison
Feature | Brake Lever | Brake Sensor
Motor Cutoff | ✅ Built-in | ✅ Add-on
Install Type | Replace lever | Attach to existing lever
Brake Compatibility | Mechanical only| Hydraulic & Mechanical
🎯 How to Choose
Choose the Brake Lever if: You’re building a new e-bike or want a clean, all-in-one setup.
Choose the Brake Sensor if: You already like your current brakes (especially hydraulic) and just need the cutoff function.
Both options provide reliable motor cutoff — it’s about how you want to integrate it into your ride.

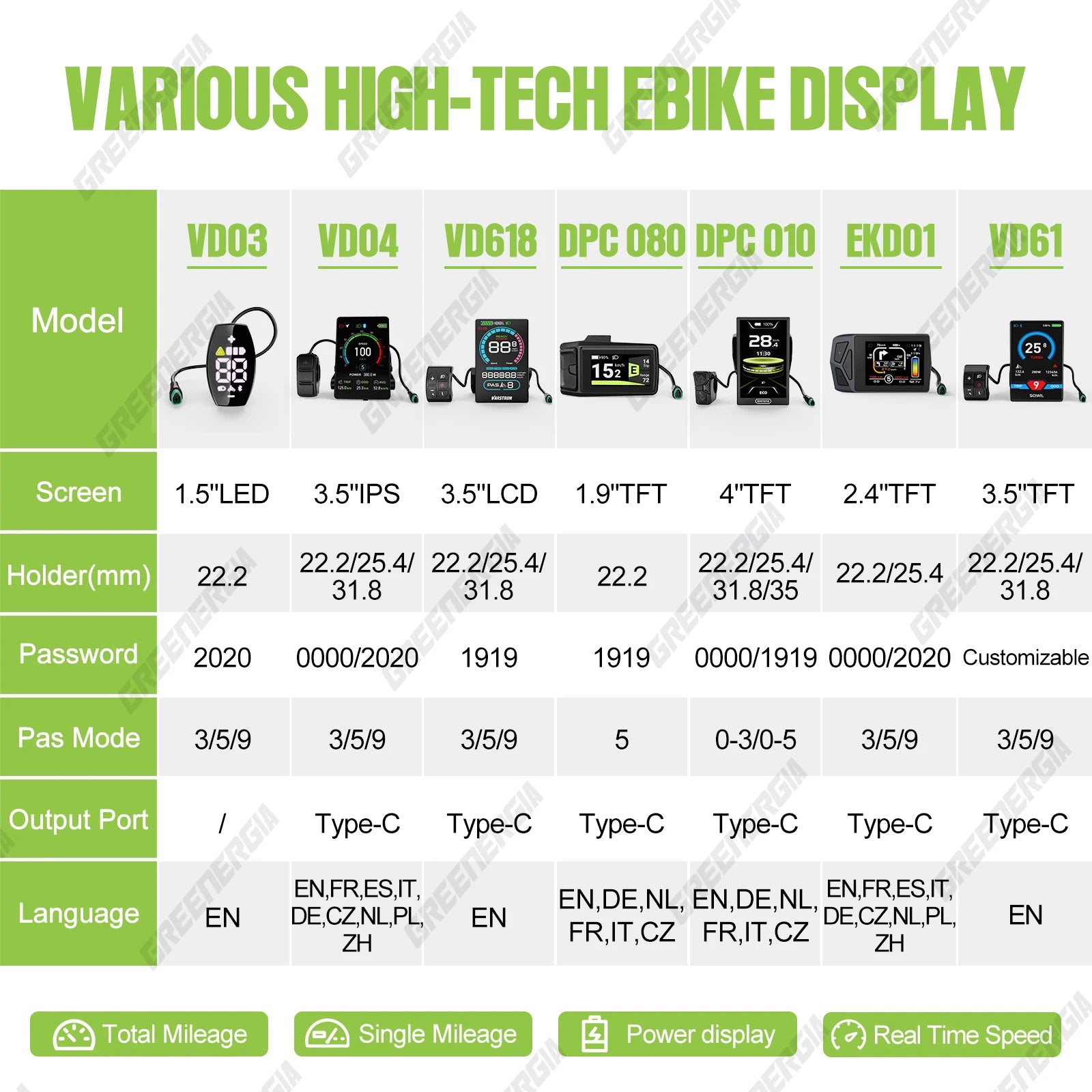

🖥️ LCD Display — Your Smart Ride Companion
Turn every ride into an informed experience — with Bafang motor at your fingertips.

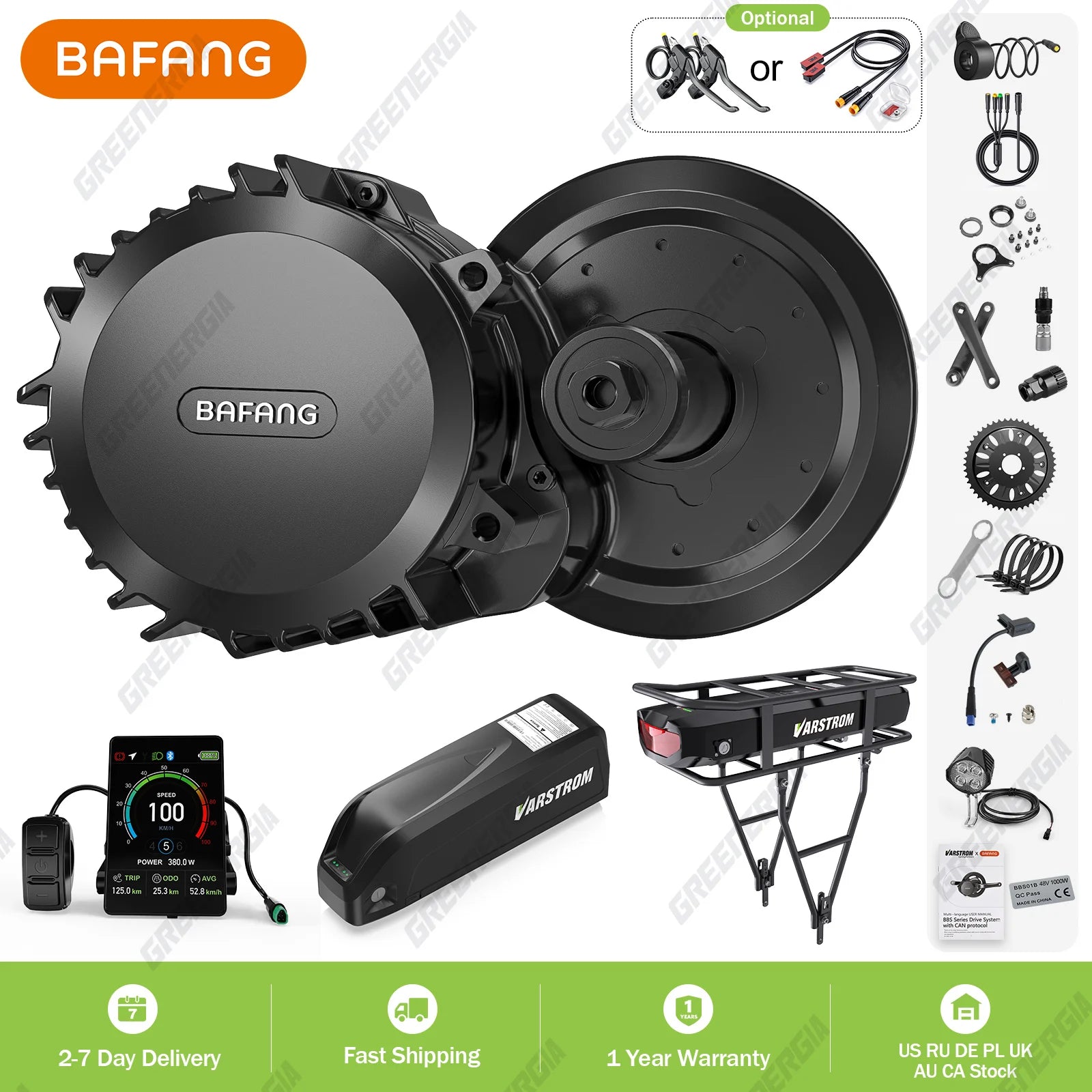

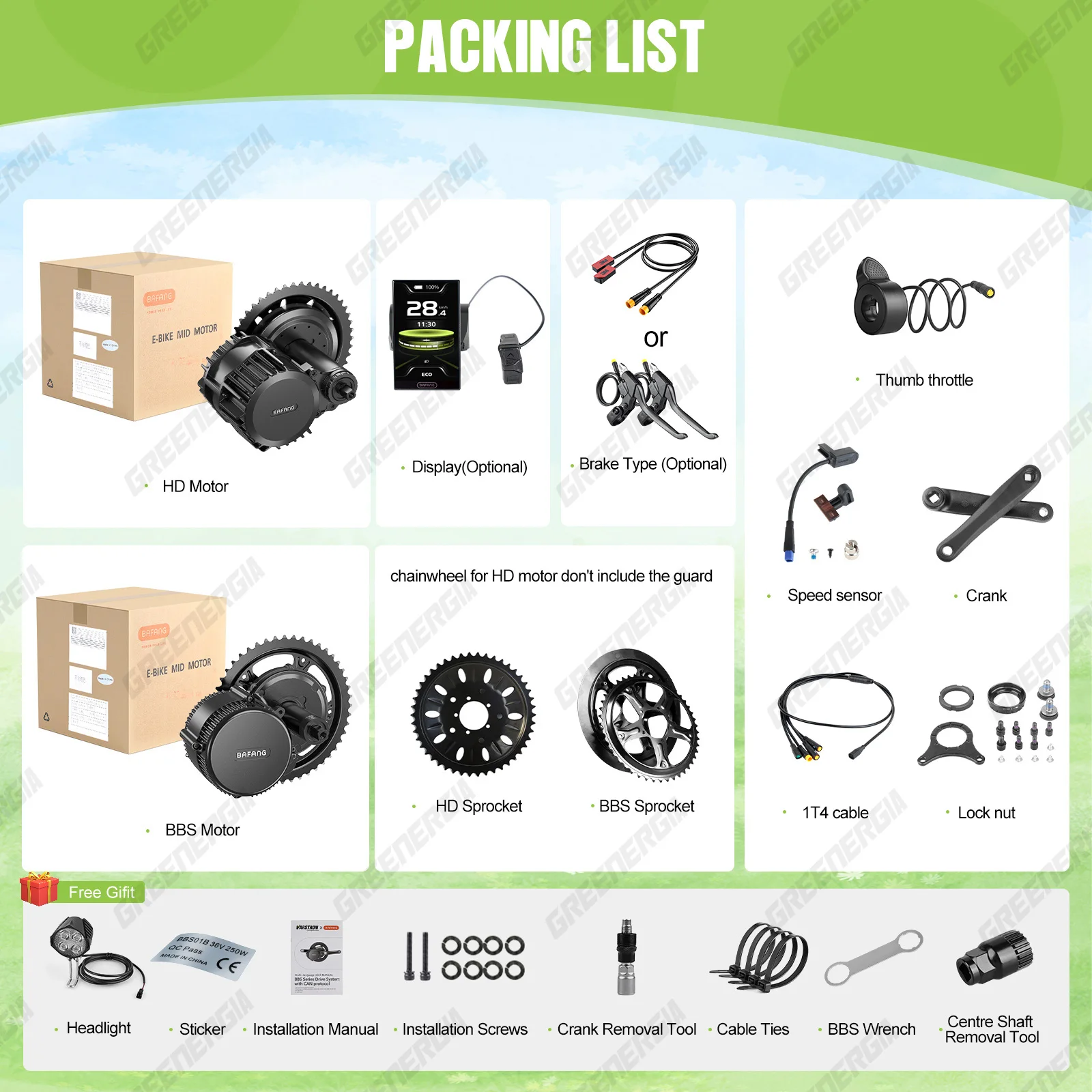

📦 What‘s In the Box — Mid-Drive Kit
1 × Mid-Drive Motor (68mm)
1 × Thumb Throttle
1 × Speed Sensor
1 × 4-in-1 EB-BUS Cable
1 × Display (optional)
1 Pair × Crank Arms
1 × Chainwheel
1 Pair × Brake Levers OR brake sensors
1 × Front Light
1 × Installation Wrench Set
1 × Crank Removal Tool
1 × 36V 250W Sticker
1 × Cable Ties Bundle
1 × User Manual
This motor kit does not include a battery.
✅ Battery is optional.
✅ We recommend ordering it together with your kit.
✅ Choose from various capacities and mounting styles in our store.

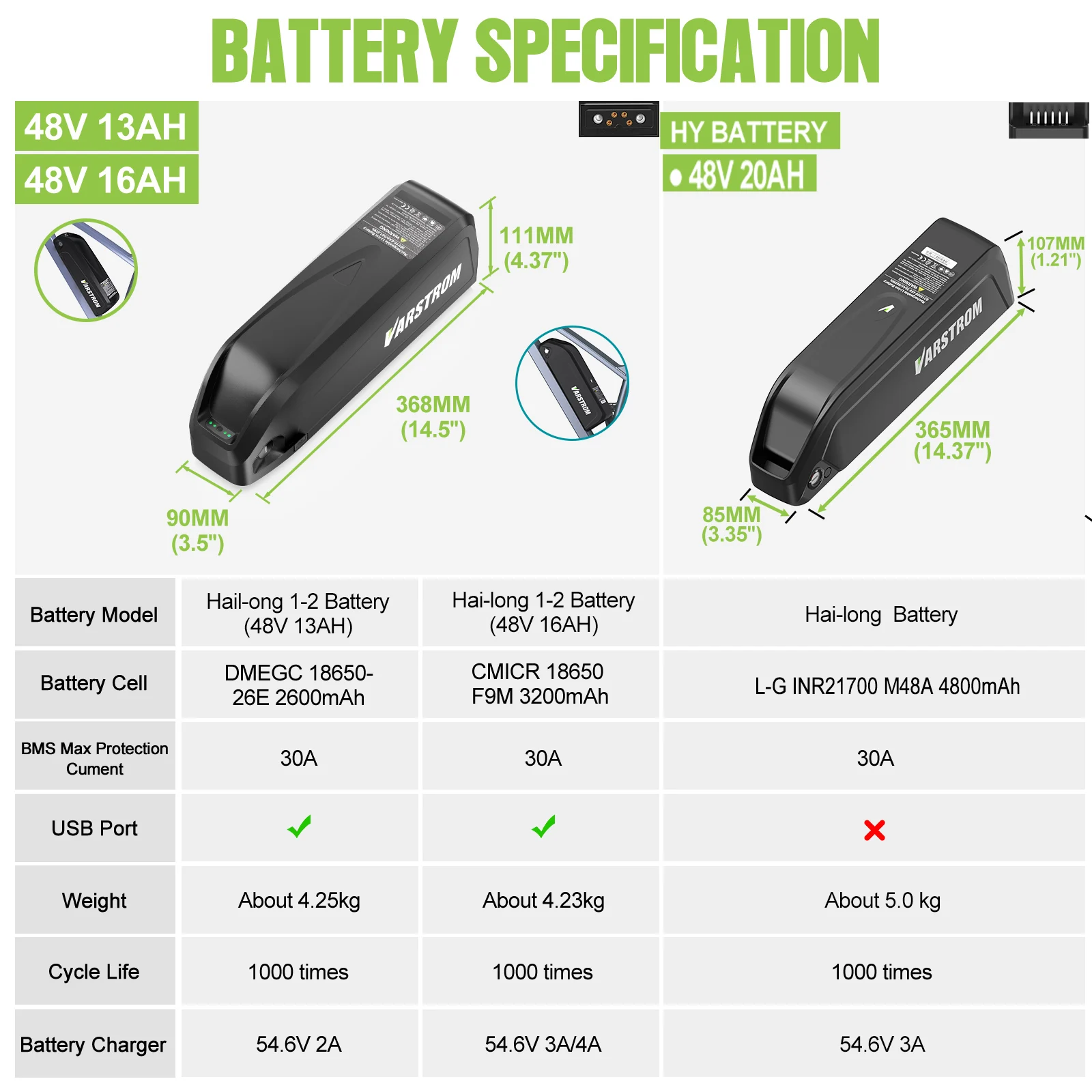

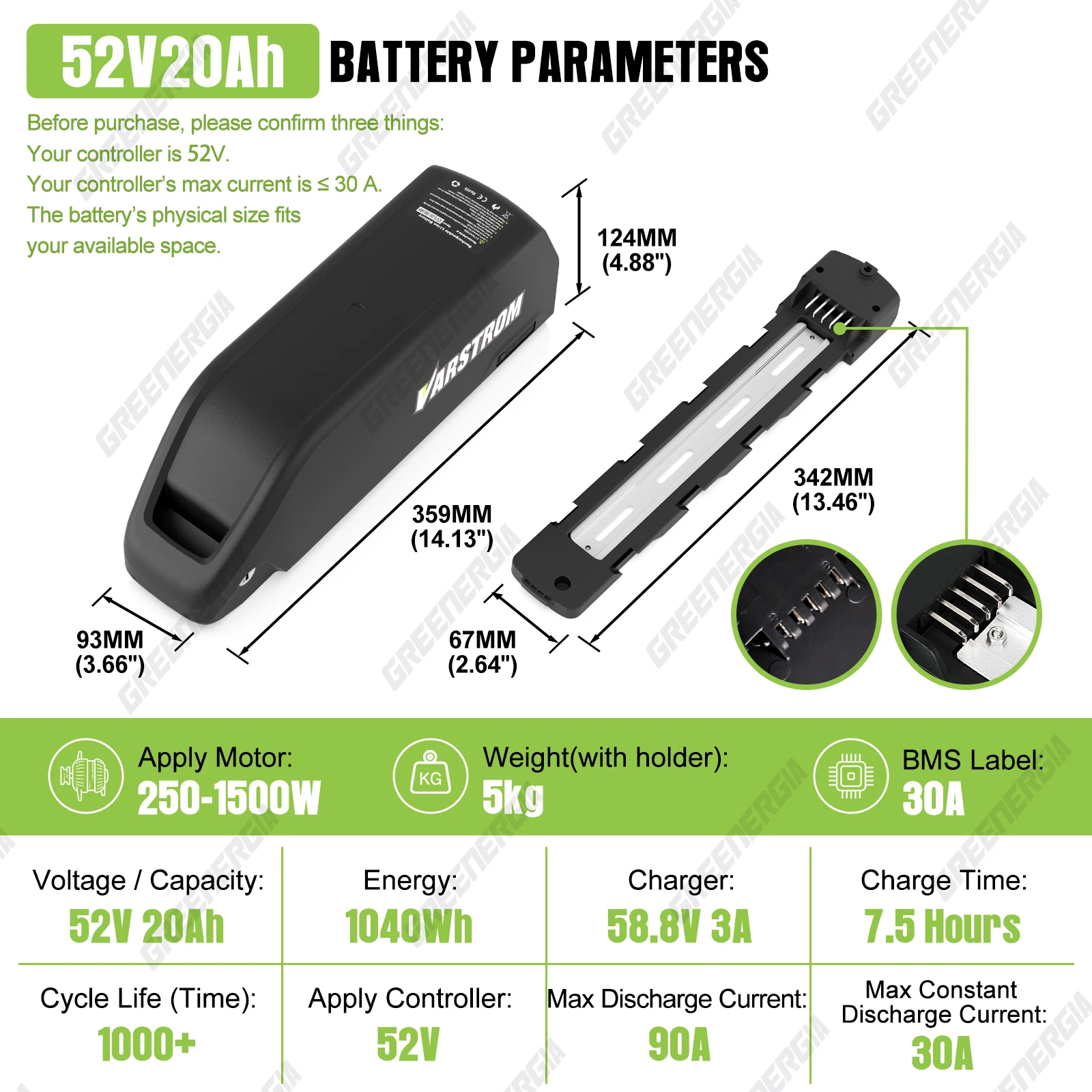

Power Your Ride — Greenergy E-Bike Battery Series
⚡ Engineered to Go Farther, Charge Faster, Last Longer
🔋 Smart Performance Design
Lightweight | Fast Charging | Extended Cycle Life
📊 Optimized Energy Efficiency
High-density cells + Advanced BMS for maximum range and reliability
🛠️ Versatile Form Factors
In-Tube Batteries – Sleek, integrated frame design
Rack-Mount Batteries – Flexible rear-carrier installation
Downtube & Universal Models – Fit most e-bike frames and setups
🔋 Battery is optional, please make your selection when ordering.
• ✅ With Battery: Includes battery and charger in your order
• ❌ Without (NO) Battery: Includes motor kits only
